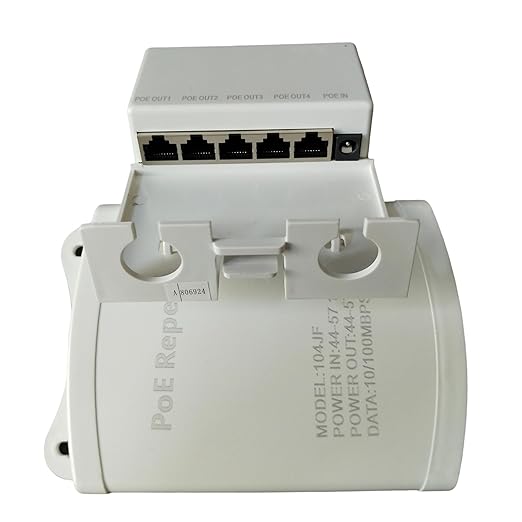

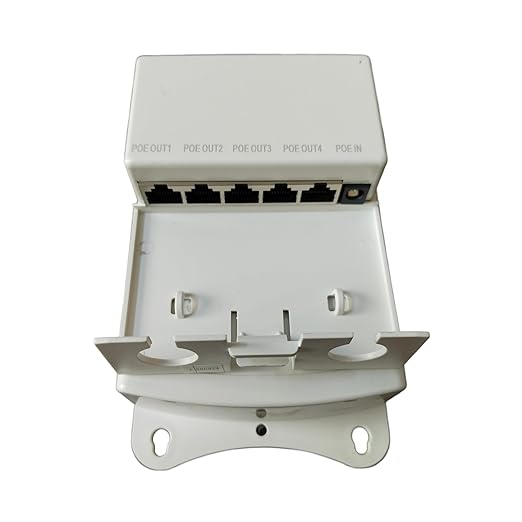

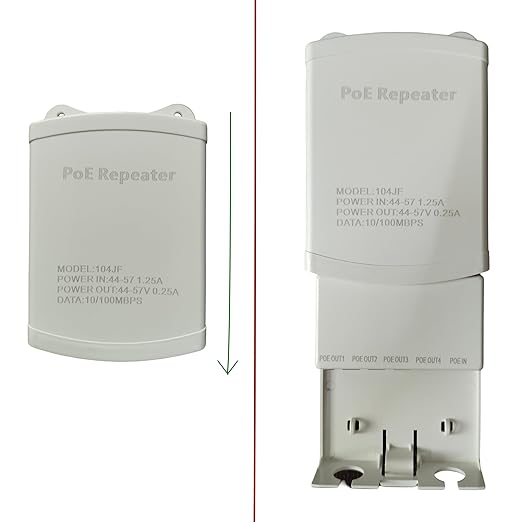

POE Extender Repeater 1 in 4 out Outdoor

Name: POE Extender Repeater 1 in 4 out Outdoor
Brand: BHANU BRASS INDUSTRIES
Price: 550.0 INR
Availability: InStock

Price 550.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

POE Extender Repeater 1 in 4 out Outdoor Specification

Maximum Distance
Up to 100m

Input Ports
1 PoE in

Operating Temperature
-30°C to 65°C

Output Ports
4 PoE out

Compatibility
IEEE 802.3af/at

Casing Material
Weatherproof aluminum

Power Source
PoE powered

Mount Type
Wall mountable

IP Rating
IP66 Outdoor

POE Extender Repeater 1 in 4 out Outdoor Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
7 Days

POE Extender Repeater 1 in 4 out Outdoor About

PlugandPlay PoE Extension: Powered entirely by IEEE802.3af/at PoE (4457V), this extender requires no external powerjust plug in your PoE switch/injector, and instantly get three powered Ethernet ports for cameras, APs, or VoIP devices.
Rugged Outdoor Build: Sealed within a durable IP66/IP67-rated housing, it resists rain, dust, UV and extreme temperatures (10C to +55C), ideal for wall- or pole-mounted installations.
100m Extension + VLAN Isolation: Increases PoE reach by 100m per device, and supports cascading up to three extenders (total 300m). Each out-port features VLAN isolation to reduce network traffic and boost security.
IEEEStandard Compatibility: Works seamlessly with 802.3af/at PoE switches, injectors, and NVRs. Automatically negotiates powerup to 30W per outport (total output 30W).
Integral Surge Protection: Features lightning and surge defence (up to 46kV, depending on model), protecting both the extender and downstream network equipment.
Flexible Mounting: Compact design fits wall- or DIN-rail installations. Auto MDI/MDI-X eliminates crossover worries, so setup is seamless and streamlined.

Reliable Outdoor PoE Expansion

Expand your network effortlessly with this outdoor-ready PoE extender, offering a single PoE input and four simultaneous outputs. Engineered with an IP66-rated weatherproof aluminum enclosure, it guards your connections in harsh climates while maintaining stable operation across wide temperature ranges. Its wall-mountable design ensures easy, secure installation for outdoor networking projects.

Advanced Compatibility and Performance

This repeater adheres to IEEE 802.3af/at standards, guaranteeing seamless use with various PoE devices like cameras and access points. With power supplied through existing PoE infrastructure, no additional cabling is required. Supporting network transmission over distances up to 100 meters, it is an optimal solution for extending coverage in demanding outdoor settings.

FAQ's of POE Extender Repeater 1 in 4 out Outdoor:

Q: How does the POE Extender Repeater 1 in 4 out Outdoor work?

A: This extender receives power and data through a single PoE input port and distributes both to four PoE output ports, enabling up to four devices to be powered and connected over Ethernet. The PoE-powered design avoids the need for extra electrical outlets.

Q: What devices are compatible with this PoE extender?

A: The extender supports all devices compliant with IEEE 802.3af/at standards, including IP cameras, wireless access points, and VoIP phones. Its versatility makes it ideal for outdoor surveillance and networking requirements.

Q: When is it beneficial to use this PoE extender outdoors?

A: This device is particularly valuable when you need to power and connect multiple PoE-enabled devices at locations far from central switches or power sources, especially in outdoor settings exposed to dust, moisture, or extreme temperatures.

Q: Where should the POE Extender Repeater be installed?

A: It should be wall-mounted in outdoor spaces where network extension and device connectivity are required, such as parking lots, public parks, building exteriors, or perimeter surveillance areas.

Q: What is the installation process for this extender?

A: Installation involves mounting the unit on a wall using the provided brackets, connecting the incoming PoE cable to the input port, and linking up to four devices to the output ports. No separate power supply is required, simplifying deployment.

Q: How does the weatherproof aluminum casing benefit outdoor use?

A: The robust IP66-rated aluminum enclosure protects the internal components from water, dust, and adverse weather, ensuring reliable operation and extended lifespan in outdoor environments.
